10.9.1 Regarding a jig "gear"

TOP PREVIOUS NEXT

• The gear is equipped to the unit to check the opening and closing of the disk tray and the hoisting of traverse unit manually at the maintenance service. (The usage of the gear is described in this disassembly procedure).

• As to the preparation of the gear jig, follow the following procedure.
  And, in case of the repair using the same set at second time onward, it is requested to keep used "gear" as it may possibly not be attached at the top cover part becauseit is already used.

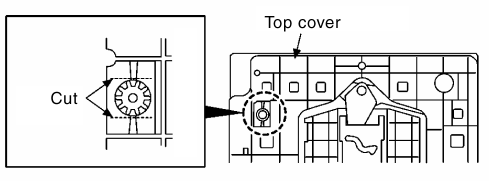

1. Remove the gear attached to the top cover of CD loading mechanism.

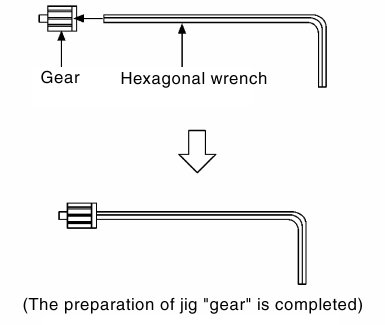

2. Insert a hexagonal wrench of 2.5mm (opposite side diameter) into the gear.
