Enter the self-diagnostic mode, following the instructions described in [5.2. Entering Self-Diagnostic Mode].
-
Insert a normal-positioned music tape with erase prevention niches on both Sides A and B. Press [TAPE
] button to activate the TPS operation so that the tape automatically stopsat an interval between music selections.
-
Press [ /CLEAR] and [TAPE
] buttons together on the remote controller. (Recording does not start.)
-
Then, insert a Cr02-positioned blank cassette tape with an erase prevention niche of Side A or B set to the left side.
-
Press [
/FF/
] button. The tape will be forwarded and automatically stop after two seconds.
-
Remove the cassette tape, and set the other side.
-
Press [
/REW/
] button. The tape will be rewound and automatically stops after two seconds.
-
Press [
/-DEMO] button on the unit.

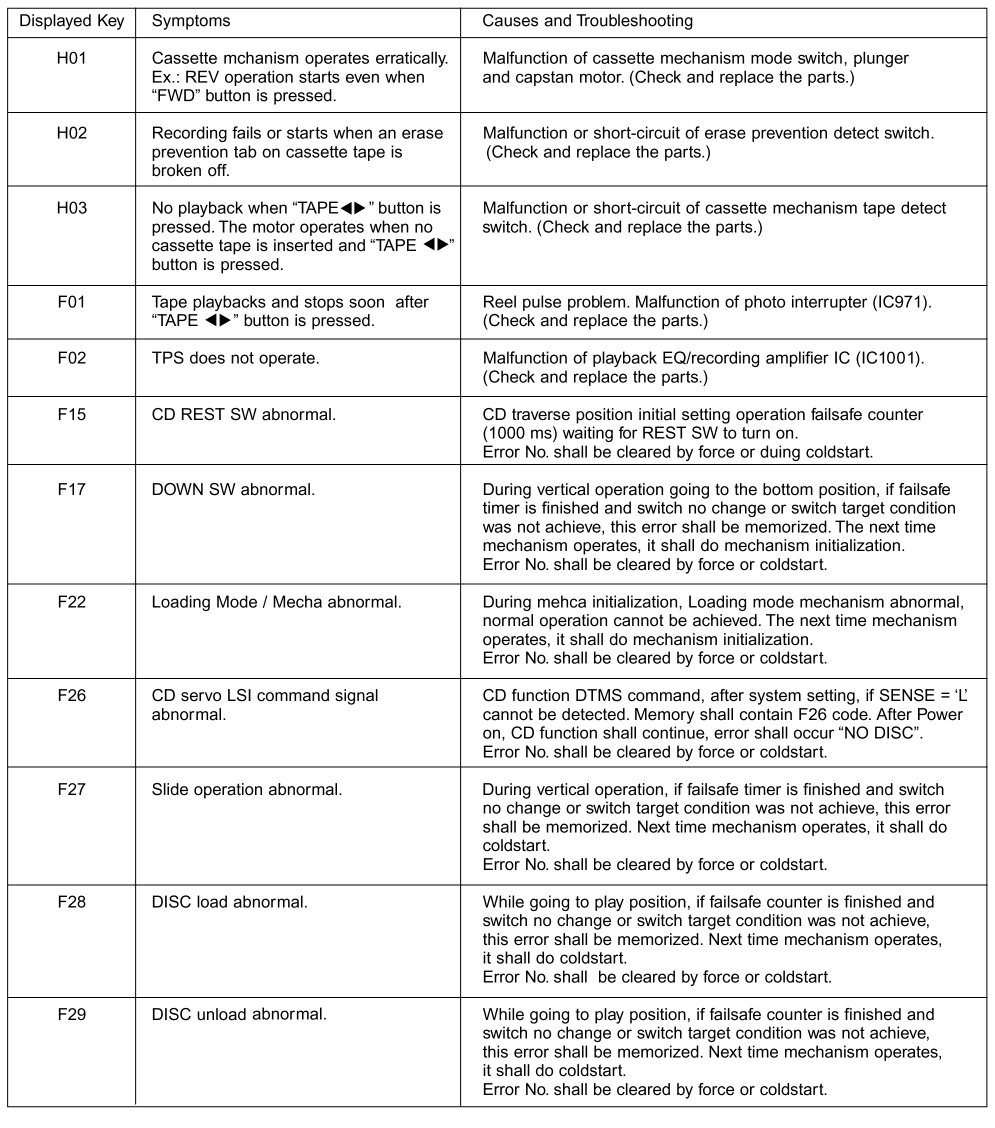

If an error is found, a self-diagnostic key appears on the display.
If several errors are found, the display shows these keys when [
/-DEMO] button is pressed repeatedly. (Ex.: H01 - H02 - F01 - H01)
If no error is found, only the message, “CD TEST” appears on the display.
(*1) TPS operation (music search) detects the blank sections between music selections. Therefore, do not use tapes with the following conditions:
